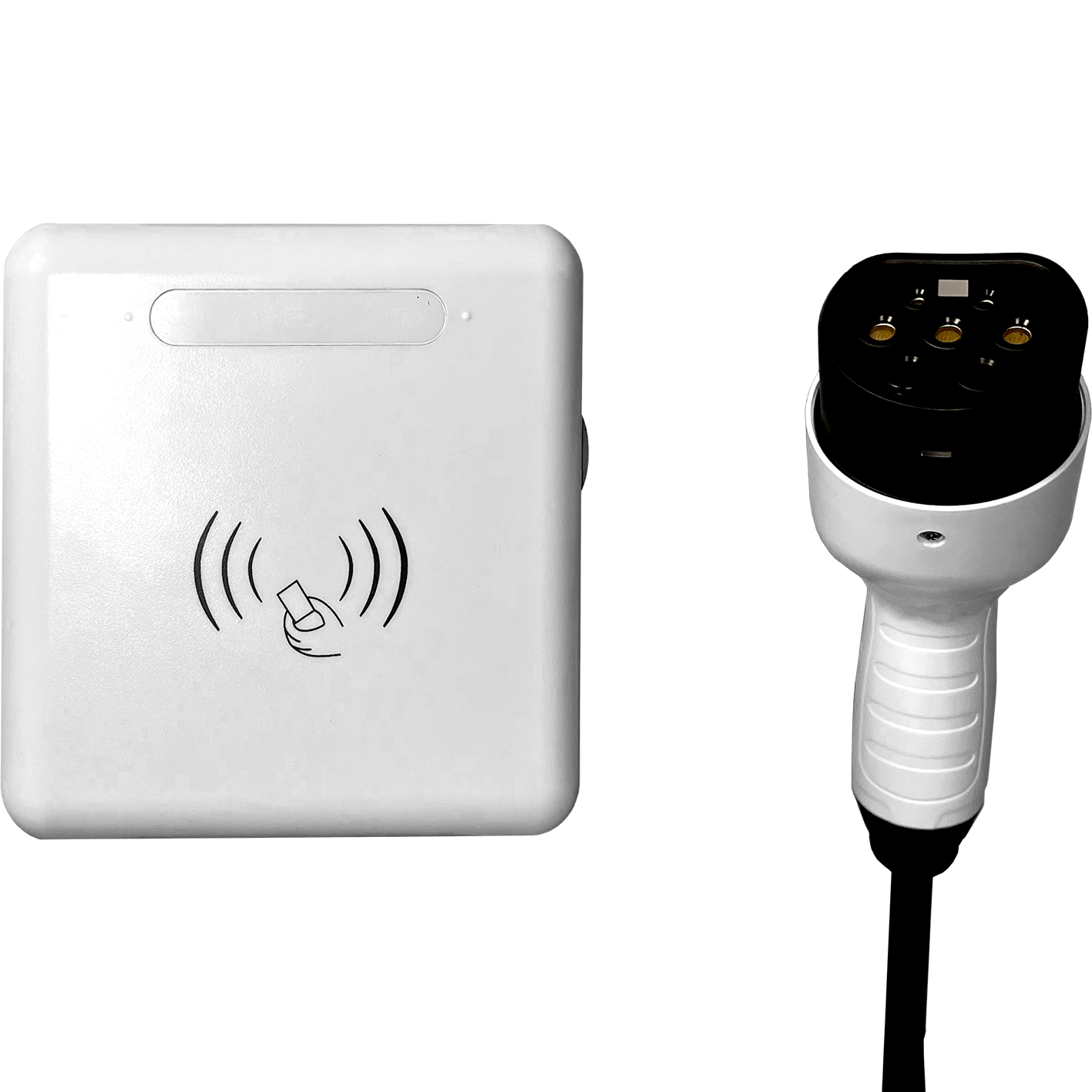

TA-AC-M

plug and play

Basic Funtion: Bluetooth & WIFI, APP, Type A+AC 30mA+DC6mA

Current: 32A

Rated Voltage: AC220V±15%/AC380V±15%

Insulation resistance: >1000mΩ

Withstand Voltage: 2000V

Contact Resistance: 0.5mΩMax

RCD: Type A+AC 30mA

Working Temperature:-30℃~+50℃

Standard: GBT/Type 2/Type 1


BUY NOW

TA-AC-ALD2

Features

Double gun wall box

Basic Funtion : Screen，Bluetooth & WIFI , RFID Card, APP

Rated Current: 16A/32A/63A
Rated Voltage: AC220V±15%/AC380V±15%
Insulation resistance: >1000mΩ
Withstand Voltage: 2000V
Contact Resistance: 0.5mΩMax
with two Sockets
RCD:Type A+AC 30mA
Working Temperature:-30℃~+50℃
Screen Size: 4.3"
Standard: GBT/Type 2/Type 1
Specifications

14KW(7kw*2）single phase，Double gun with  Socket

22KW(11kw*2))three phase，Double gun with  Socket

44KW(22kw*2)，three phase， Double gun with  Socket


BUY NOW

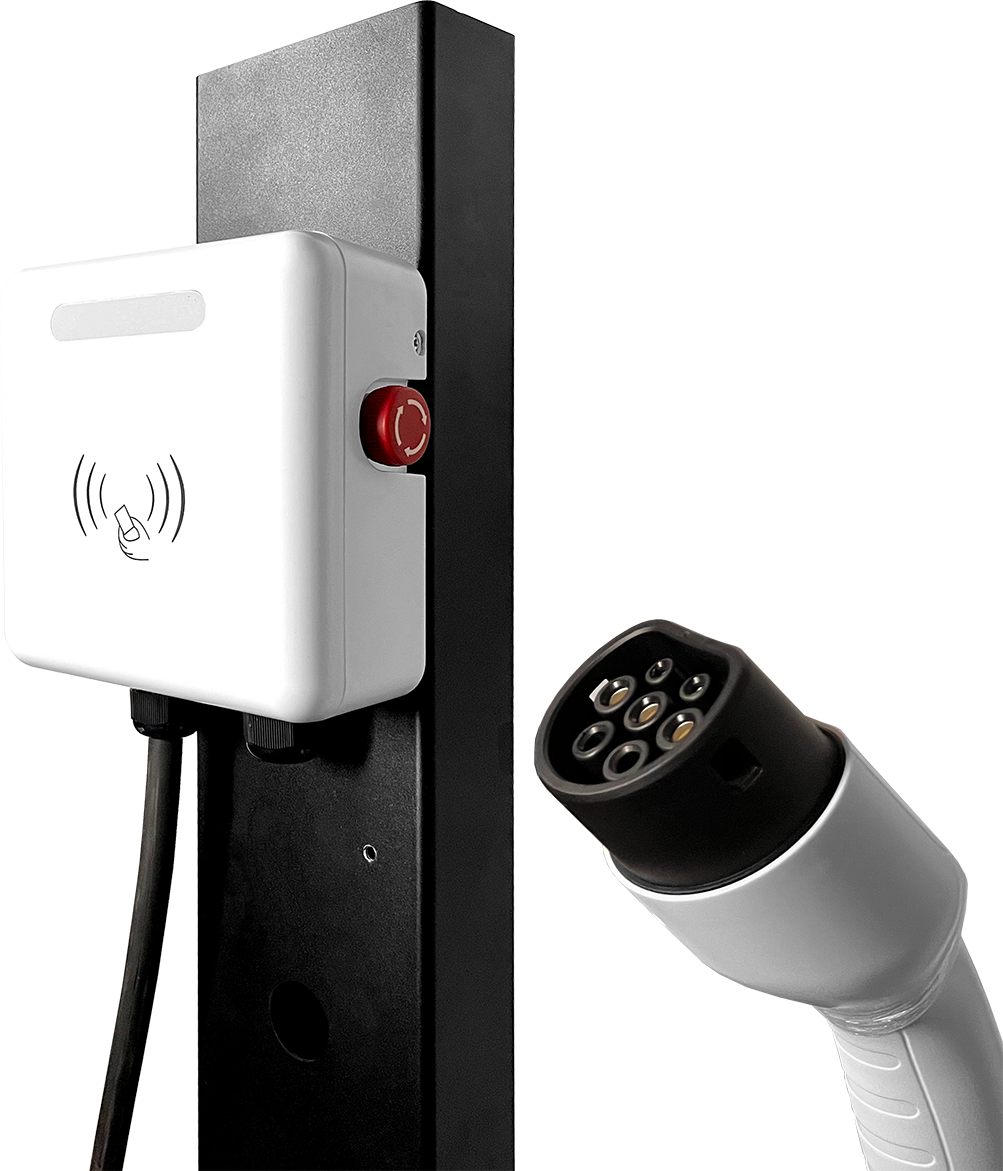

TA-AC-ALD3

Features

Double gun floor stand

Basic Funtion : Screen，Bluetooth & WIFI , RFID Card, APP

Rated Current: 16A/32A/63A
Rated Voltage: AC220V±15%/AC380V±15%
Insulation resistance: >1000mΩ
Withstand Voltage: 2000V
Contact Resistance: 0.5mΩMax
Cable length: 5M（TPU）
RCD:Type A+AC 30mA
Working Temperature:-30℃~+50℃
Screen Size: 4.3"
Standard: GBT/Type 2/Type 1
Specifications

14KW(7kw*2)Double gun with cable

22KW(11kw*2) Double gun with cable

44KW(22kw*2) Double gun with cable


BUY NOW

TA-AC-ALD1

Features

Double gun wall box

Basic Funtion : Screen，Bluetooth & WIFI , RFID Card, APP

Rated Current: 16A/32A/63A
Rated Voltage: AC220V±15%/AC380V±15%
Insulation resistance: >1000mΩ
Withstand Voltage: 2000V
Contact Resistance: 0.5mΩMax
Cable length: 5M（TPU）
RCD:Type A+AC 30mA
Working Temperature:-30℃~+50℃
Screen Size: 4.3"
Standard: GBT/Type 2/Type 1
Specifications

14KW(7kw*2)Double gun with cable

22KW(11kw*2) Double gun with cable

44KW(22kw*2) Double gun with cable


BUY NOW

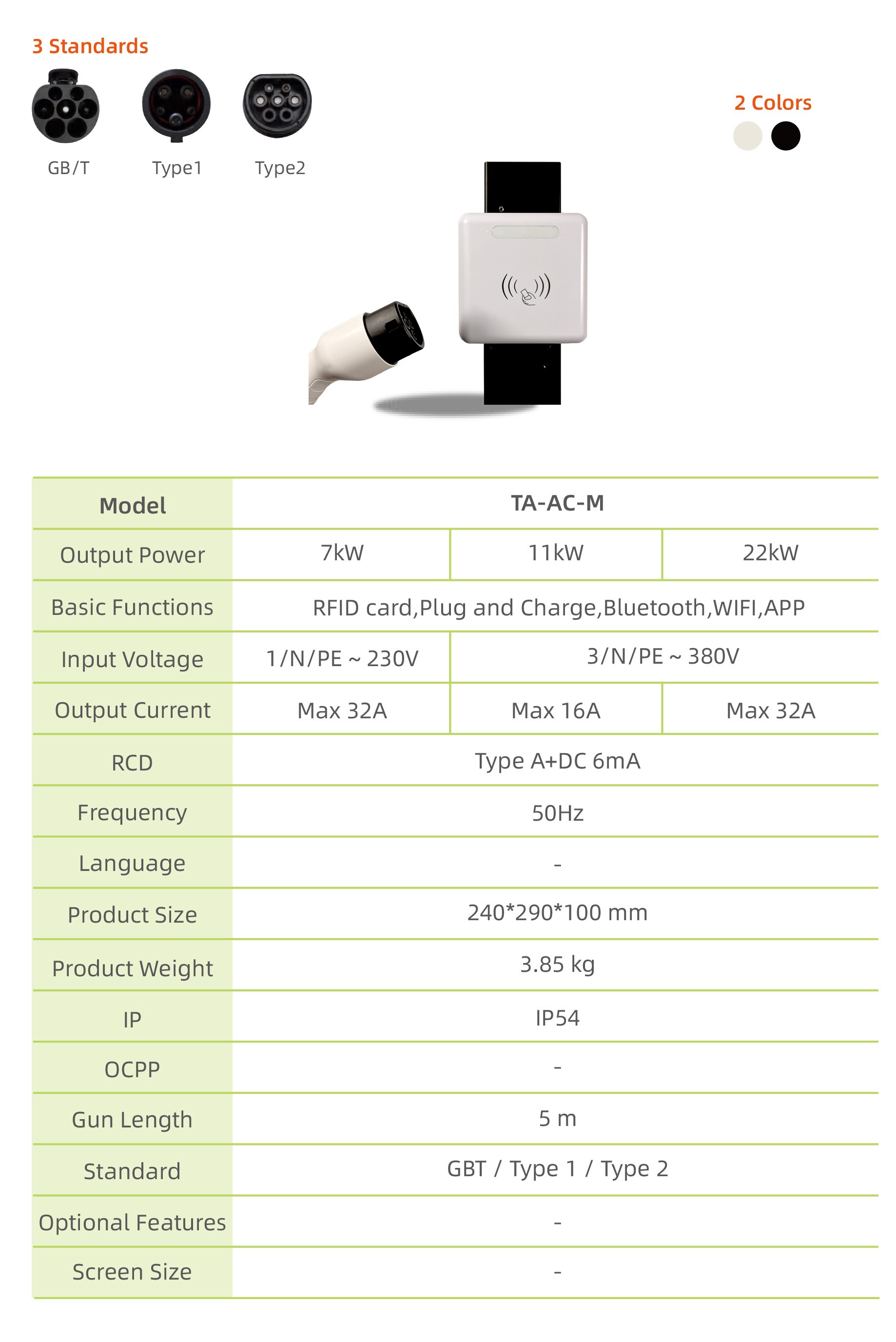

TA-AC-M

Features
Basic Funtion: Bluetooth & WIFI, APP, Type A+AC 30mA+DC6mA
Current: 32A
Rated Voltage: AC220V±15%/AC380V±15%
Insulation resistance: >1000mΩ
Withstand Voltage: 2000V
Contact Resistance: 0.5mΩMax
RCD: Type A+AC 30mA
Working Temperature:-30℃~+50℃
Standard: GBT/Type 2/Type 1
Specifications
plug and play
